MODEL:M-310
品牌: FAGIE
材质: 中纤板/黑点漆
类型: 会议音箱/10寸
♬ Trustworthy Sound


产品特性/Product Characteristics >>

M系列是多用途语言扩声音箱,箱体为扇状多边形。悬吊安装设计,带有可调节角度的壁挂支架,方便不同形式的安装。独特制作的扬声器、分频器,借助计算机的辅助调试,使得M系列音箱拥有语言清晰、声音通透、广域的频响特性。

M series is a multi-purpose language speaker box with a fan-shaped polygon. Suspended installation design, with adjustable angle wall mount bracket, to facilitate different forms of installation. Uniquely produced speakers and crossovers, with the aid of computer-assisted debugging, make the M series speakers have clear language, transparent sound, and wide-area frequency response.


技术参数/Technical Parameters >>

型 号

Model

M-310


系统组成

System composition

二音路/两分频

2-way two division frequency


单元结构

Unit structure

LF10"×1+HF25


输入阻抗

Input resistance


额定功率

Rated power

200W


峰值功率

Peak power

400W


最大声压级

Maximum SPL

116dB


灵敏度

Sensitivity

98dB


频率响应

Frequency response

55Hz~18KHz


输入连接器

Input connector

线夹

Line clip


板材材质

Enclosure material

中纤板 MDF


表面处理

Surface treatment

黑/白点漆

Black/white paint


吊挂硬件

Hanging hardware

M8x2+专用壁架(Dedicated wall shelf)


规格尺寸

Standard sizes

460x300x250mm(HxWxD)

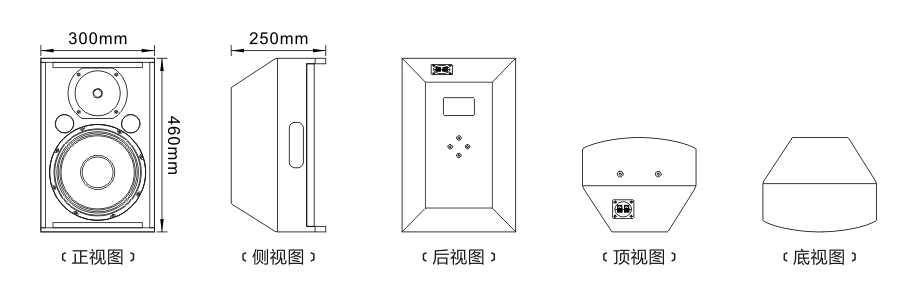

规格尺寸/Specifications Aize >>

M-310 工程图.jpg

应用范围/Scope of Application >>

多功能厅/会议/教学/培训室/家庭娱乐/背景音乐/专卖店/超市

Multifunctional Hall / Conference / Teaching / Training Room / Family Entertainment / Background Music / Specialty Store / Supermarket


推荐功放/Recommended Power Amplifier >>

推荐搭配MK-3500功放。

It is recommended to match with MK-3500 power amplifier.
