MODEL:KS-12
品牌 : FAGIE
材质 : 高密度中纤板
类型 : 娱乐音箱


产品特性/Product Characteristics >>

KS系列两分频全频音箱是特别针对各种高级KTV包房、酒吧及多功能厅而研发。该音箱高音自然圆润,中频更加厚实,低频充沛有力,采用大功率低音单元,配合合理的容积设计,满足更大的功率承载要求。同时,箱体采用优美的弧度结构设计,确保在各种环稳定使用,能够轻松应付各种不同类型的酒吧、KTV场馆,多功能厅等。

KS series two-way full-range speakers are specially developed for various advanced KTV rooms, bars and function rooms. The treble of the speaker is natural and round, the intermediate frequency is thicker, the low frequency is powerful, and the high-power woofer is used with a reasonable volume design to meet the requirements of greater power load. At the same time, the speaker body adopts a beautiful curved structure design to ensure stable use in various rings, and can easily cope with various types of bars, KTV venues, multi-purpose halls, and the like.


技术参数/Technical Parameters >>

型 号

Model

KS-12


系统组成

System composition

二音路/两分频

2-way two division frequency


单元结构

Unit structure

LF12"×1+HF1.75"


输入阻抗

Input resistance


额定功率

Rated power

350W


峰值功率

Peak power

700W


最大声压级

Maximum SPL

118dB


灵敏度

Sensitivity

98dB


频率响应

Frequency response

45Hz~20KHz


覆盖角度

Coverage angle

100°×60°


输入连接器

Input connector

2XNL4 Speakon


板材材质

Enclosure material

中纤板( MDF)


表面处理

Surface treatment

黑色点漆

Black spot paint


吊挂硬件

Hanging hardware

M8x19

1底托(1 Bottom support)


规格尺寸

Standard sizes

618x370x405mm(HxWxD)

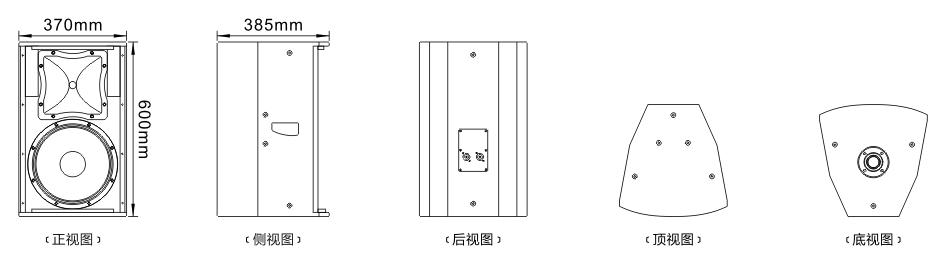

规格尺寸/Specifications Aize >>




应用范围/Scope of Application >>

娱乐酒吧/KTV包房/运动场馆/多功能厅/会议/教学

Entertainment Bar / KTV Room / Sports Venue / Function Room / Conference / Teaching


推荐功放/Recommended Power Amplifier >>

推荐搭配LA-500功放。

It is recommended to match with LA-500 power amplifier.
